ManorLIFT Plus
ManorLIFT Plus, a fully customisable lifting solution that aims to makes mobility affordable and tempting. The hydraulic technology make it ideal for both indoors & outdoors of multi-storey residences, The pre-fabricated shafts make it easy to suitable for spaces with low space requirements.
Rated Load (Kg)
300-1125
Max Travel (m)
18
Max Speed (m/s)
0.35-0.60
Upgrade your space with ManorLIFT Plus, our unique and customized design solutions. With ManorLIFT Plus, we offer convenience with a more refined and valuable approach. This hydraulic lift is designed for vertical transportation within or outside a multi-storey residence. We offer installation of ManorLIFT Plus in various types of residential buildings, even those with shaft pit or headroom limitations. Depending upon the requirement, ManorLIFT can be built with a pre-fabricated metal shaft construction.
Inquire NowOffering Ultimate Elevation Experience
01
Spatial Efficiency
02
Unique Tailor-made Design
03
Self-Supported Shaft
04
Emergency Evacuation
05
Green Features
06
Fast Delivery
| Model | ManorLIFT Plus |
| Rated Load (Kg) | 300-1125 |
| Suspension | 1:2 |
| Machine Room | MRL with controller cabinet |
| Max Travel (m) | 18 |
| Max Number of Stops | 5 |
| Max Speed (m/s) | 0.35 – 0.60 |
| Min Pit Depth (mm) | 230 – 1000 |
| Min Headroom (mm) | 2600 -3000 |
Notes
- The minimum dimensions are shown above. It is important to consider tolerances for inclined lift ways.
- When non-standard capacities and dimensions are required, it is recommended to consult with Jet Lifts.

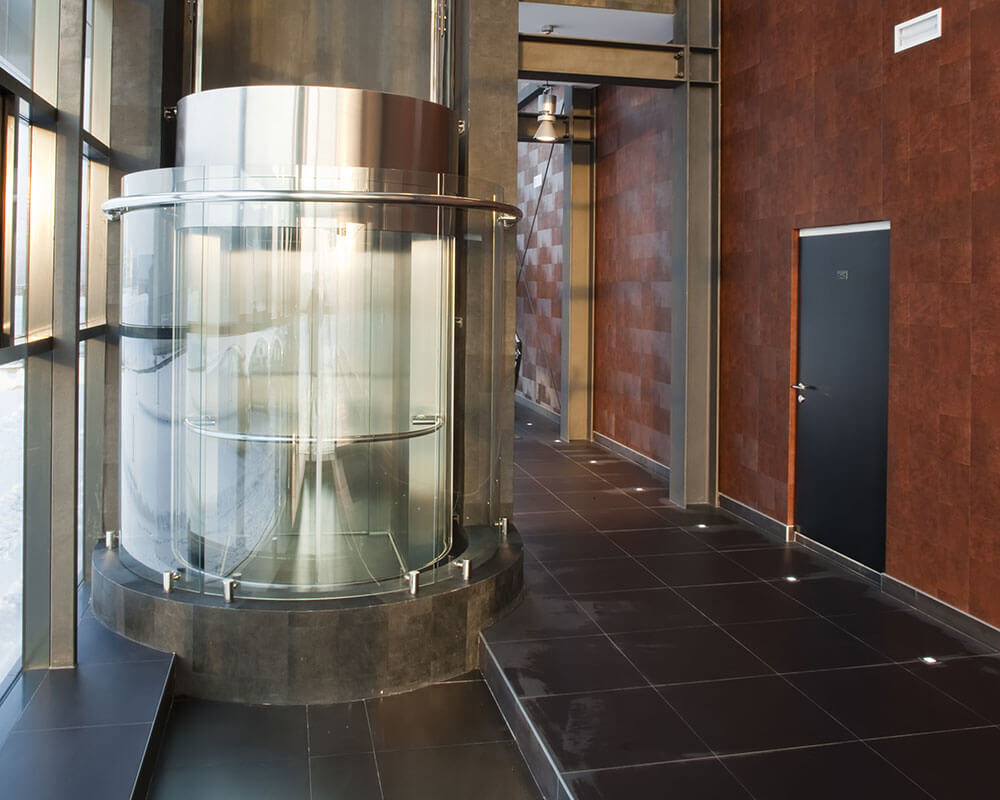

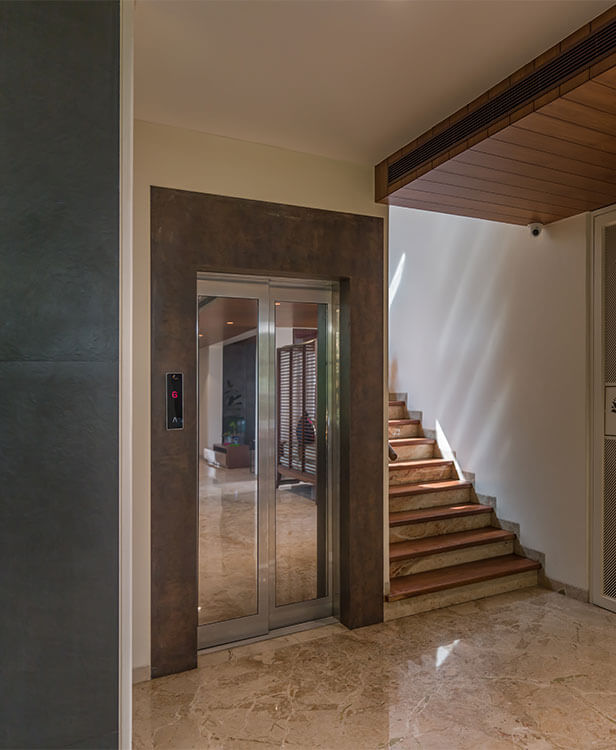

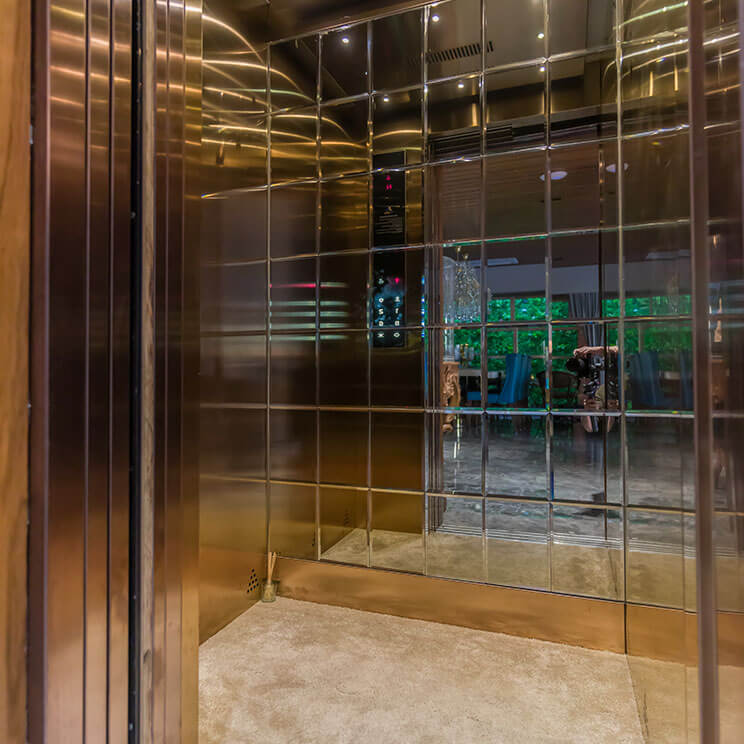

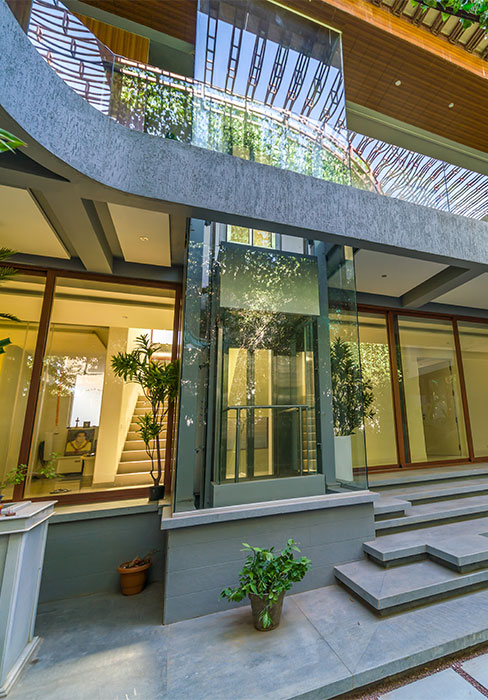

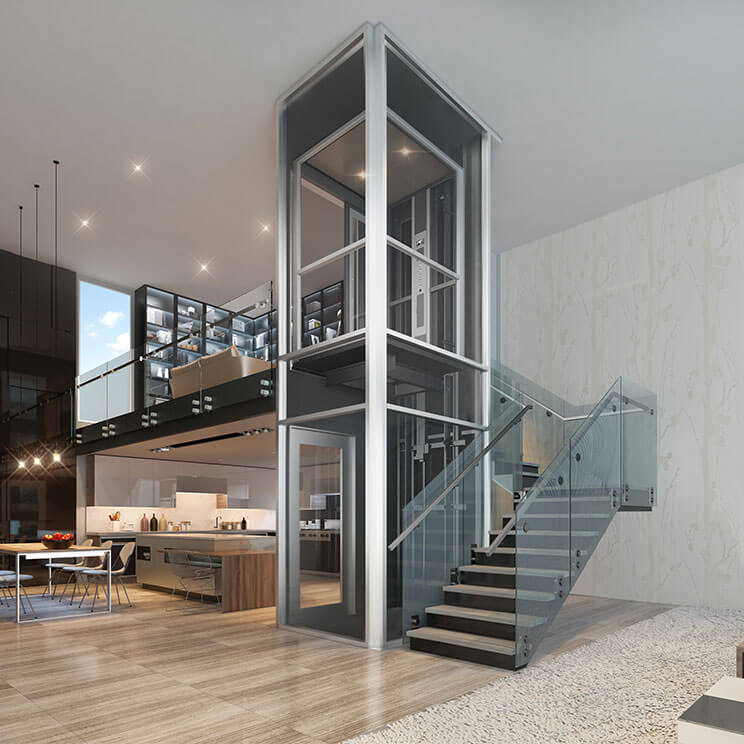

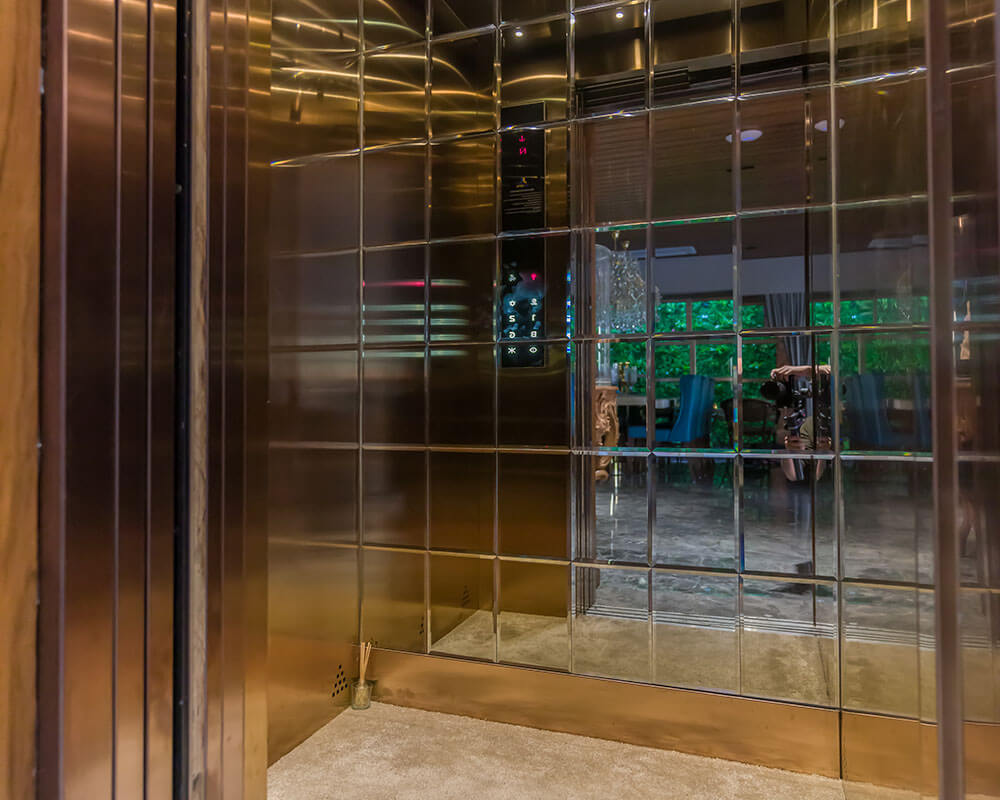

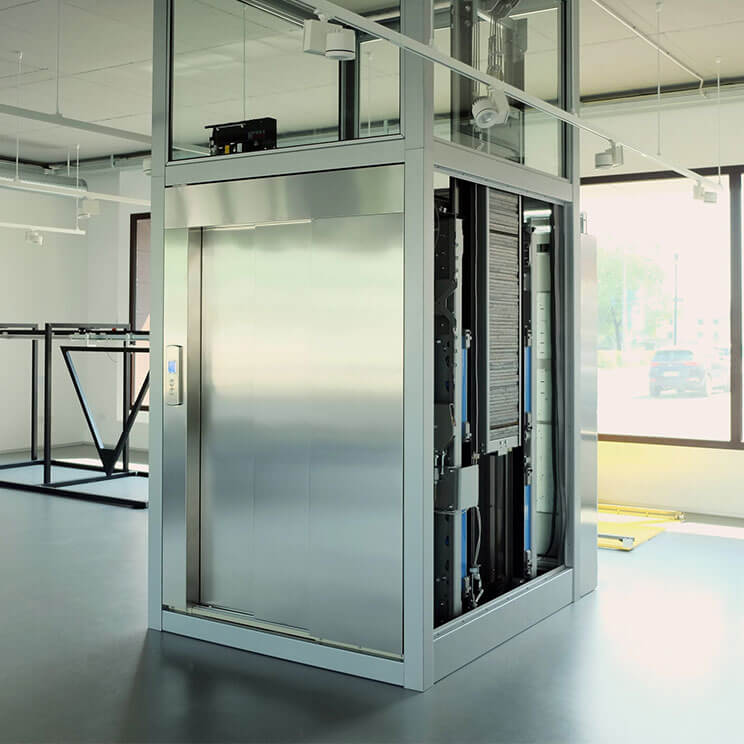

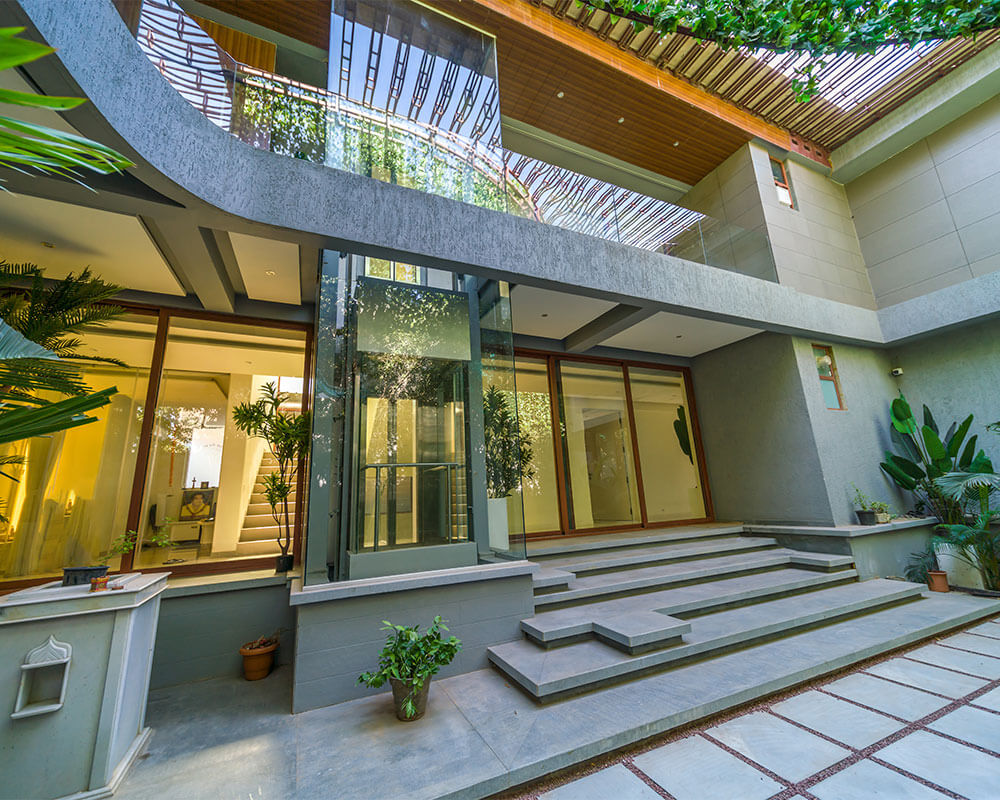

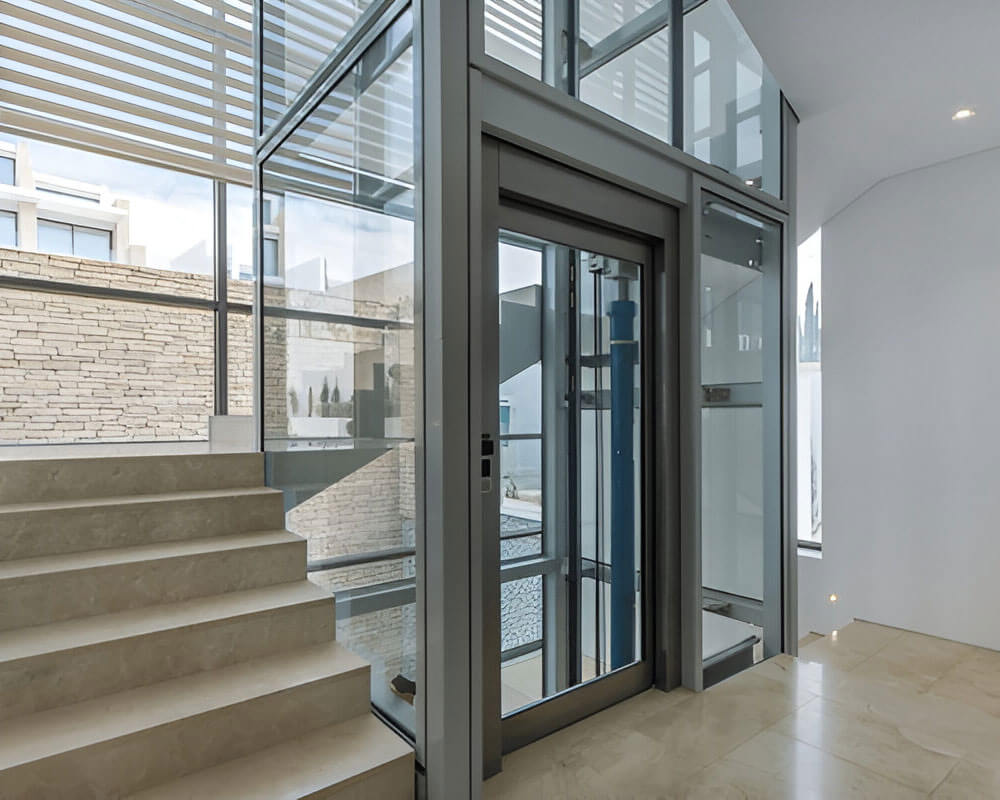

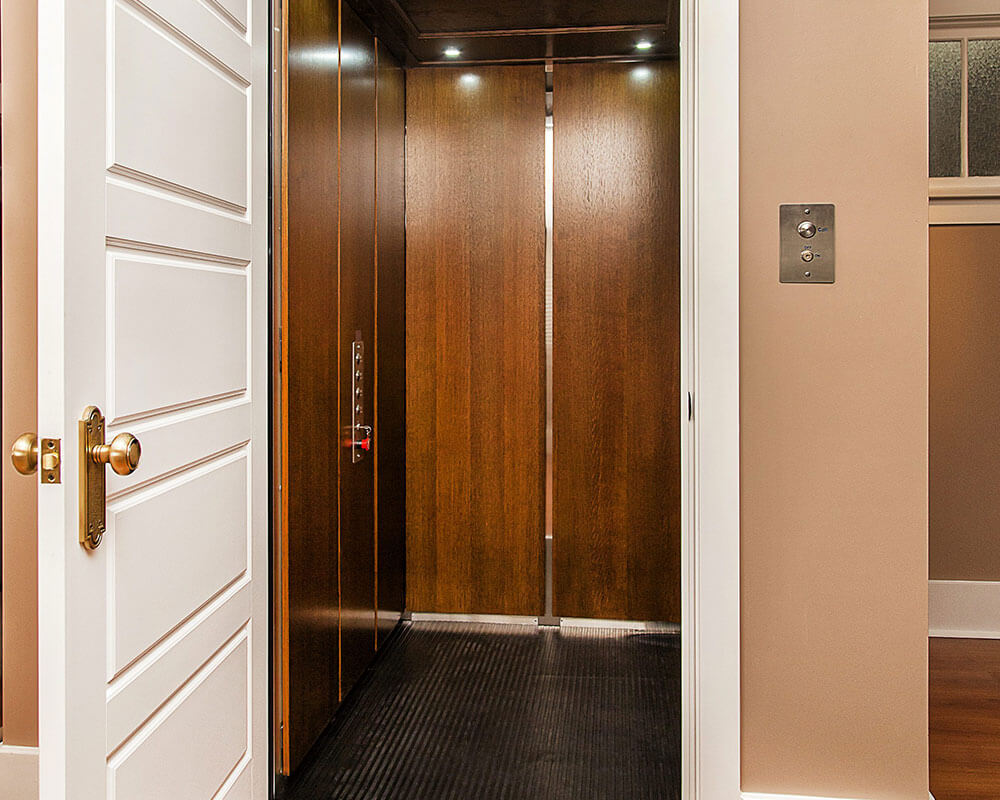

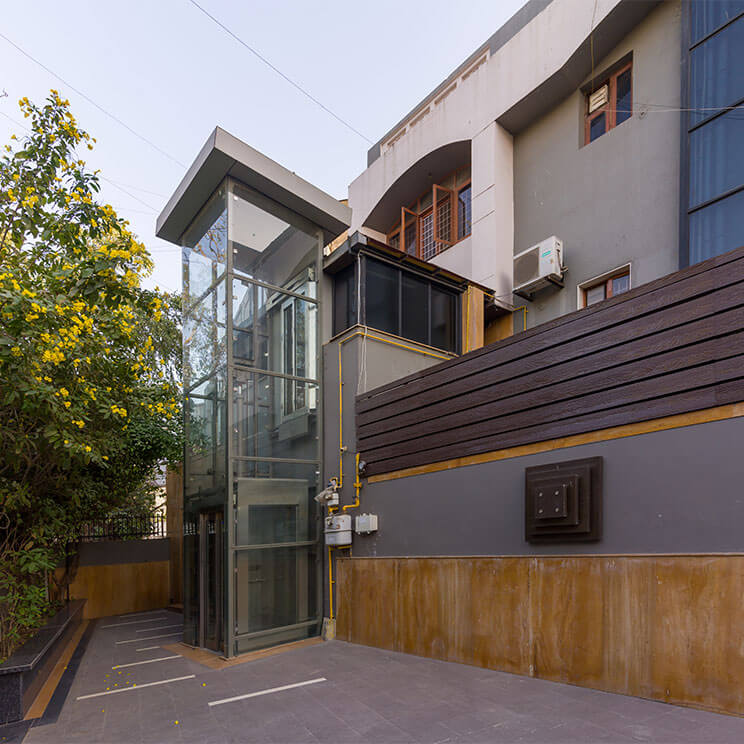

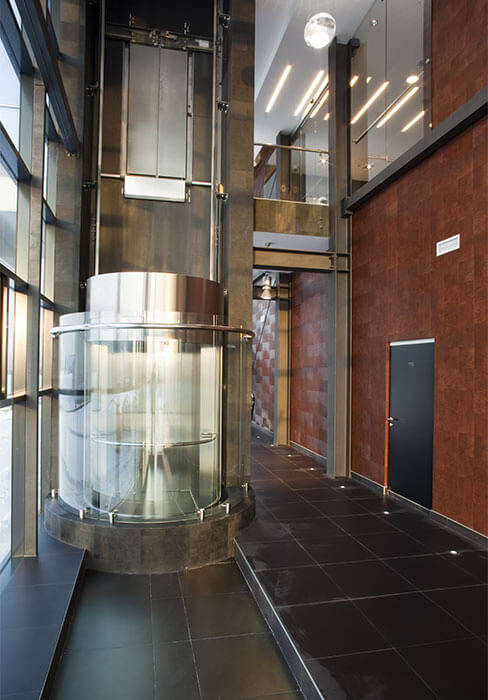

Product Gallery
